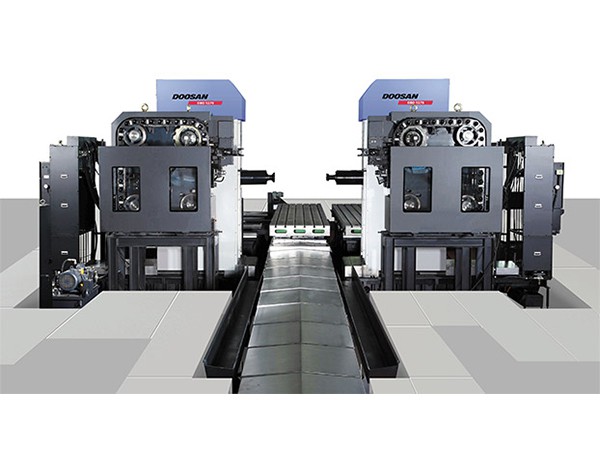

Сверлильно-фрезерные станки серии DBD: DBD 1270, DBD 1580.
| Технические характеристики: | |||||||||
| DBD 1270 | DBD 1580 | ||||||||
| Spindle Or Quill Diameter | mm (inch) | - | - | ||||||
| Table Size | mmxmm (inchxinch) | 1250 x 7000 (49.21 x 275.59) | 1500 x 8000 (59.06 x 314.96) | ||||||
| Spindle Speed | r/min | 3000 | 2500 | ||||||
| Max. Spindle Moter Power | kW (hp) | 26 (34.9) | 26 (34.9) | ||||||
| Travel Distance X-axis | mm (inch) | 7000 (275.59) | 8000 (314.96) | ||||||
| Travel Distance Y-axis | mm (inch) | 1500 (59.06) | 2000 (78.74) | ||||||
| Travel Distance Z-axis | mm (inch) | 1000 (39.37) | 450 (17.72) | ||||||
| Travel Distance W-axis | mm (inch) | N/A | 500 (19.69) | ||||||
| Tool Storage Capacity (Opt.) | ea | 40, 60 SELECT | 40, 60 SELECT | ||||||
| NC System | - | FANUC | FANUC | ||||||
